The VLX 150 Heavy-Duty Sliding Door is built for openings that most standard sliders simply can’t handle. With a maximum span of up to 24 feet wide and a 0.118-inch wall thickness, this is an aluminum door system engineered for expansive glass walls in modern Los Angeles homes, hillside properties, and commercial storefronts. Westlight Windows Los Angeles is an authorized ViewLux installation partner, which means you get the product backed by a team that installs it correctly, per AAMA standards, every time. We serve homeowners and builders across Los Angeles County, from Venice to Pasadena. Call (213) 810-3461 to talk about your project.

Call (213) 810-3461

Product Overview – VLX 150 Heavy-Duty Sliding Door

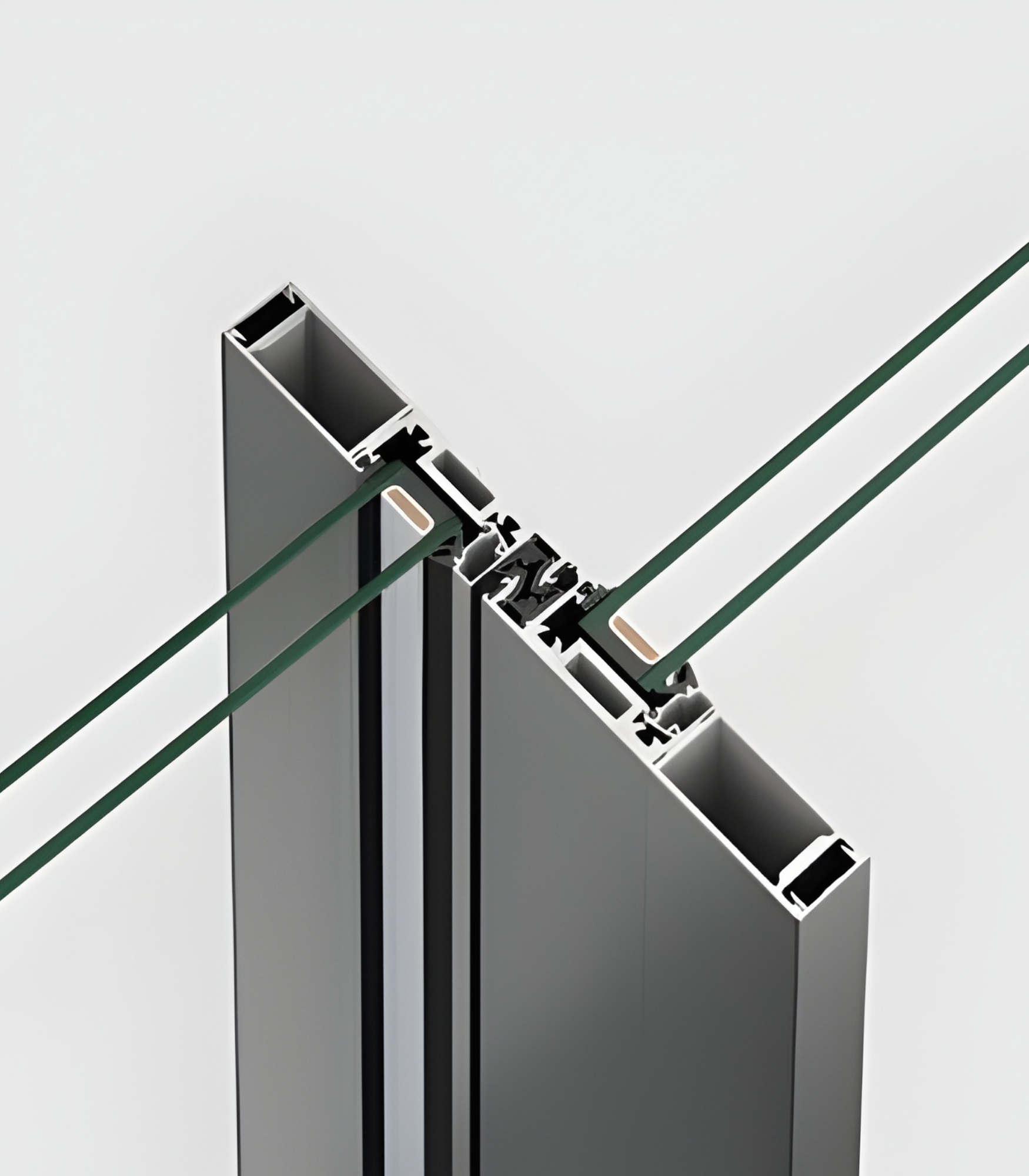

The VLX 150 is a strength-focused, large-span aluminum slider. It was designed for architects and homeowners in Los Angeles who want floor-to-ceiling glass without a bulky frame eating into the view. The 2.95-inch profile width is slim enough to keep sightlines clean, but the underlying structure is substantial: thick aluminum extrusions, stainless steel roller hardware, and multi-track configurations that let you stack panels in two, three, or four tracks depending on how wide you want the opening.

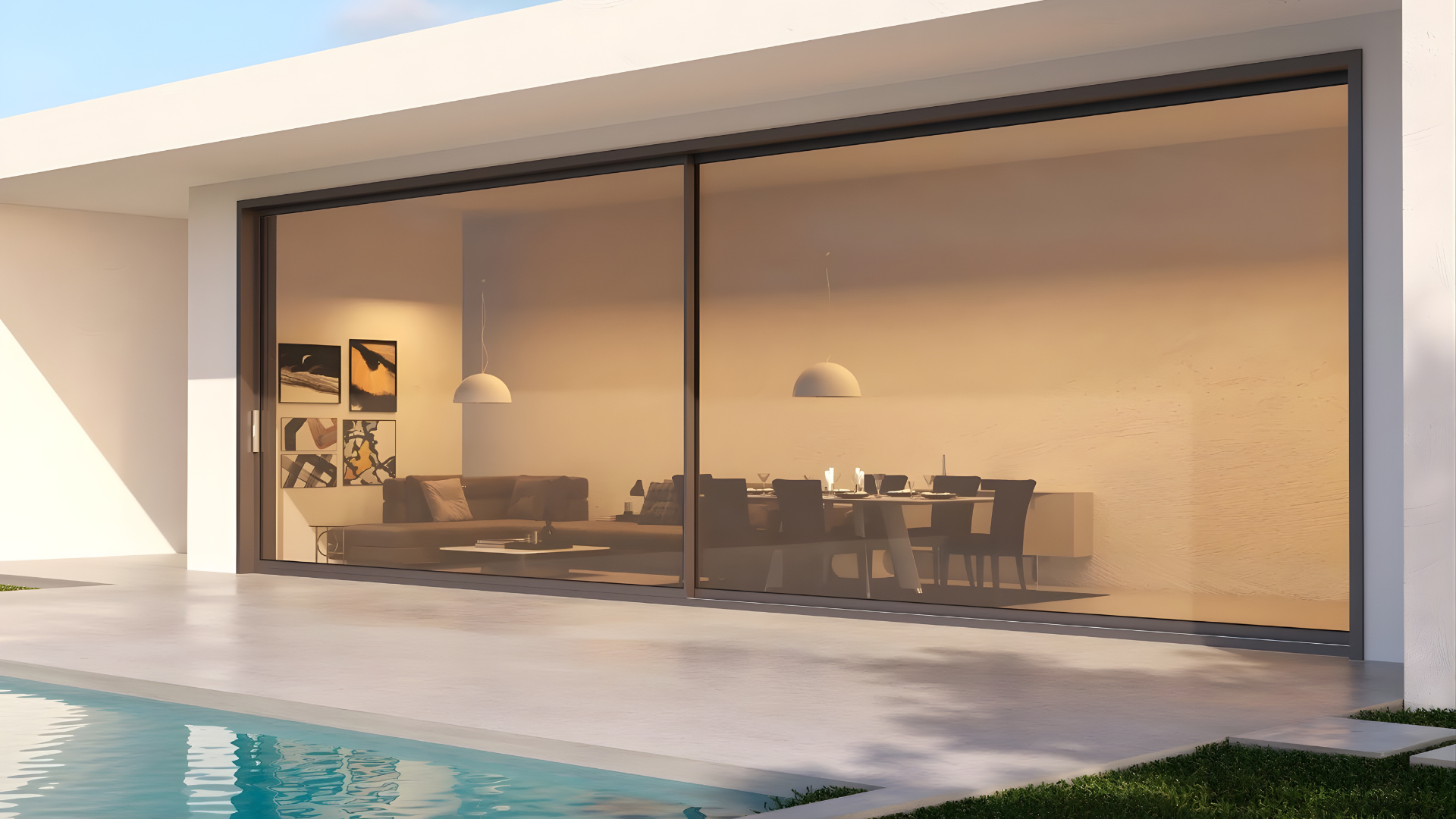

Where does this door fit? Mid-century remodels in Silver Lake that open to a deck. Contemporary builds in Brentwood with a 20-foot opening onto a pool. Rooftop additions in Downtown Los Angeles where the view is the point. The VLX 150 handles spans and panel weights that lighter residential sliders can’t, and it does so while still gliding smoothly on stainless rollers. Buyers choose this series when they want a door that will still operate quietly ten years from now, after thousands of open-close cycles and more than a few Santa Ana wind events. The hardware matters just as much as the glass, and ViewLux engineered the VLX 150 with rolling assemblies that are built for repetition, not showroom demos.

Our role as an authorized ViewLux installation partner in Los Angeles means you’re not buying a product and hoping for the best. You’re getting a door that’s specified correctly for your opening, installed to manufacturer tolerances, and sealed the way Los Angeles weather actually demands. That partnership matters when a door weighs several hundred pounds and has to be dead level to function.

Technical Specifications

Here’s what the VLX 150 Heavy-Duty Sliding Door brings to a Los Angeles project, in plain numbers:

• Wall thickness: 0.118 inches – thicker than most standard aluminum sliders, which gives the frame structural rigidity across wide spans.
• Profile width: 2.95 inches – slim sightlines that still house the thermal break and reinforced chambers.
• Maximum span: Up to 24 feet wide – suitable for panoramic openings that smaller door systems can’t physically support without sagging.

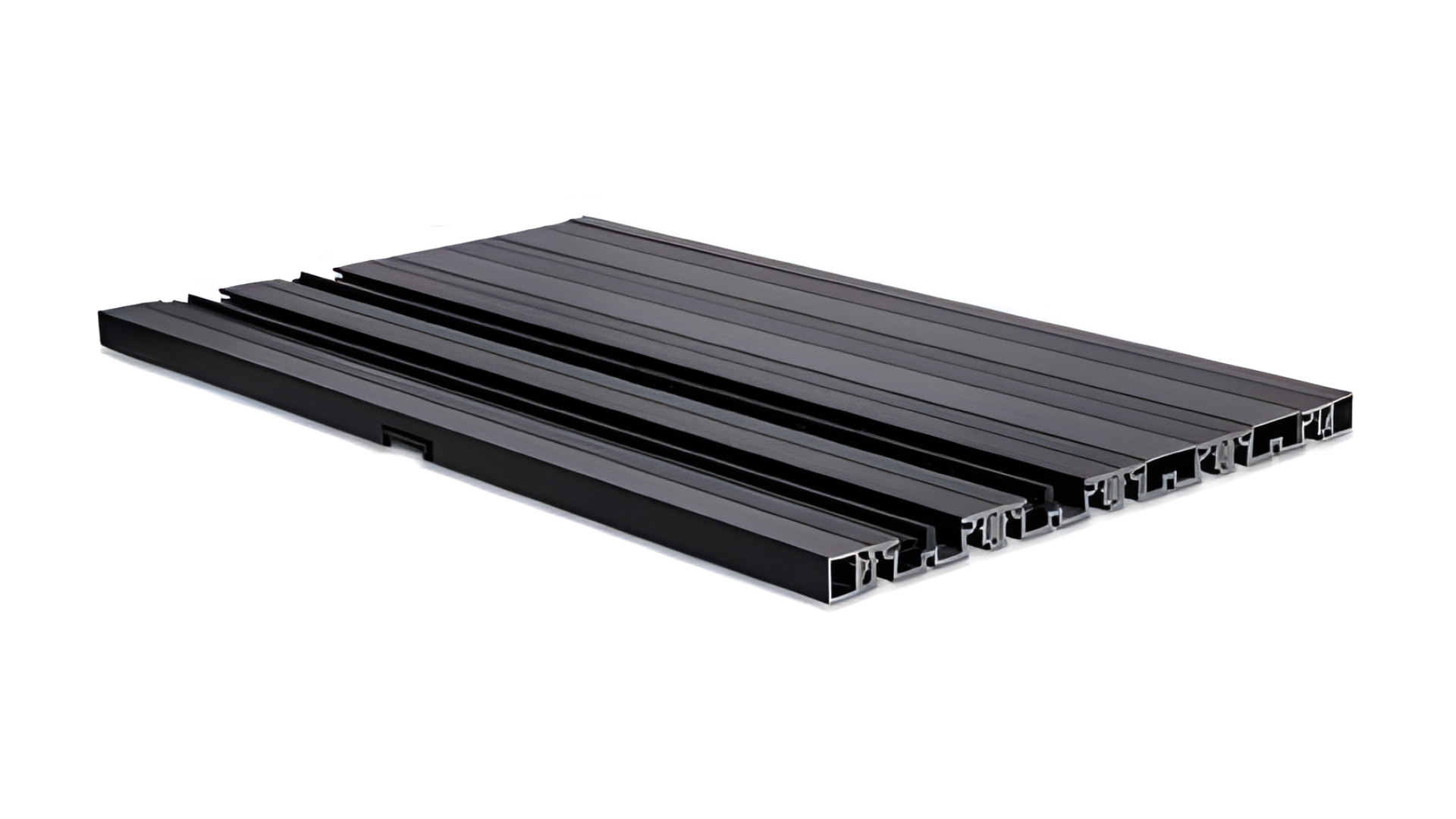

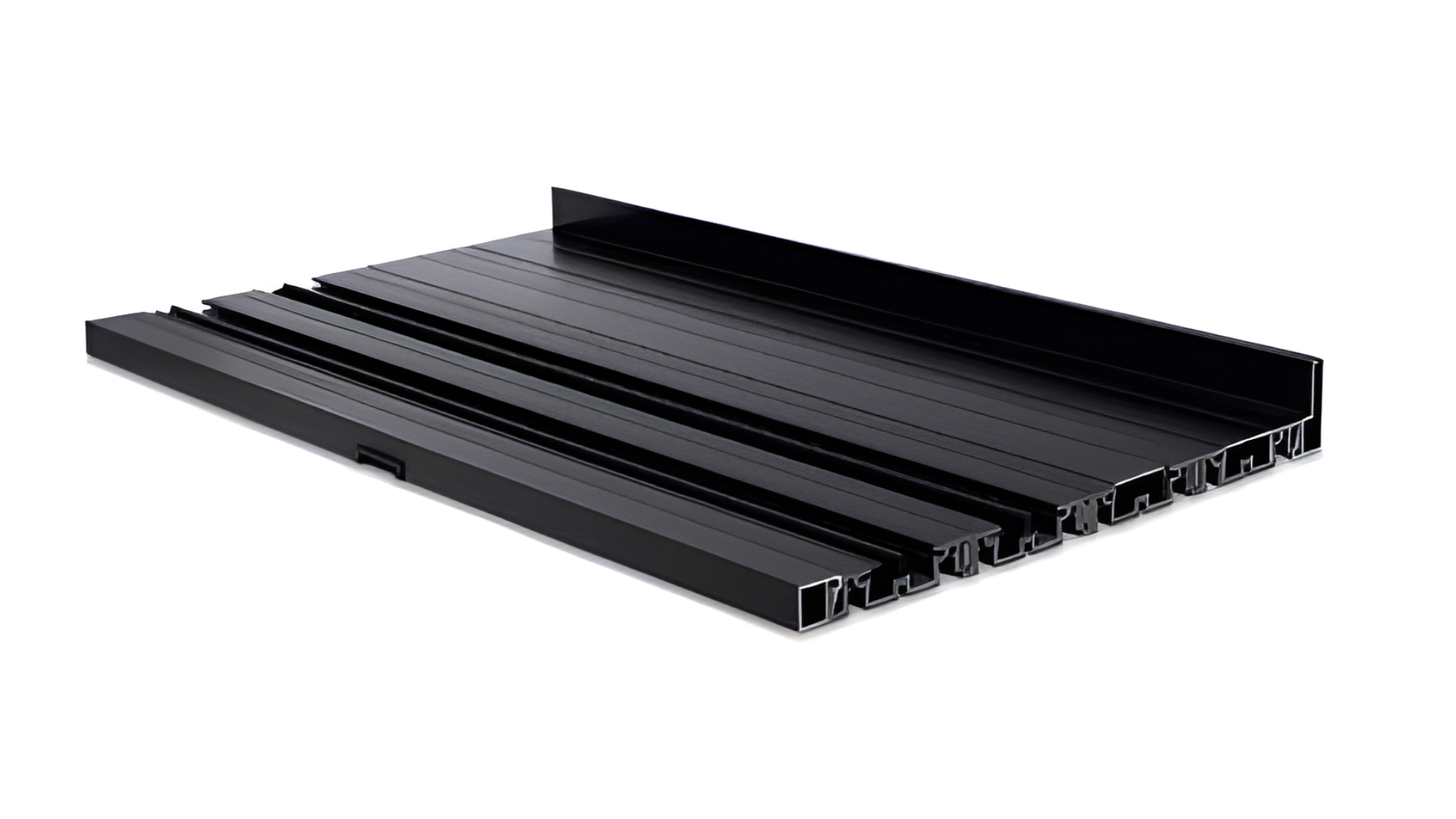

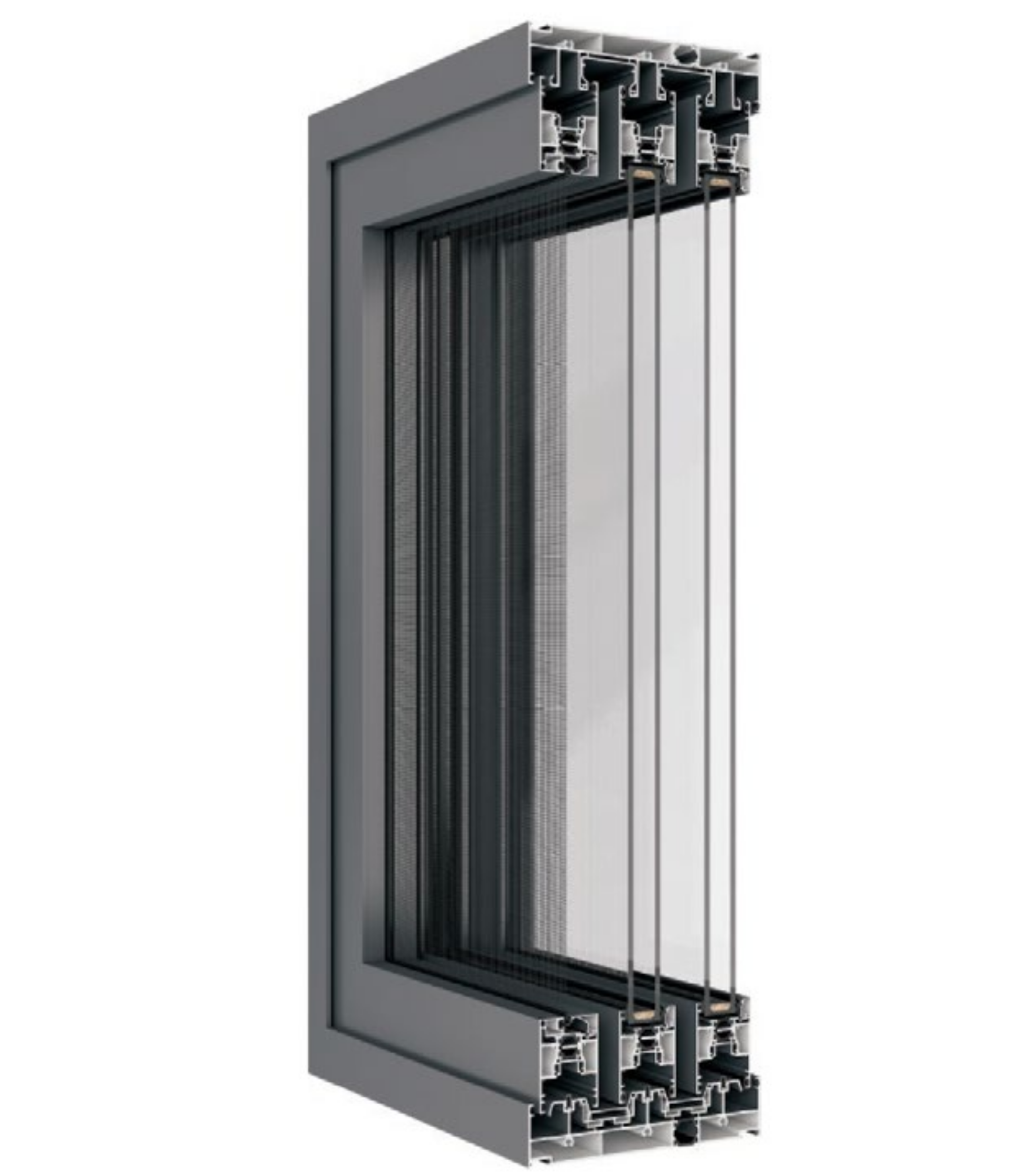

• Track configurations: 2-Track, 3-Track, and 4-Track systems, allowing for varied panel stacking and opening widths depending on the wall space available.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable Screen and Sliding Screen.

Every unit is made to order for your specific opening dimensions. We don’t install off-the-shelf sizes and make them “work” – that’s how you end up with gaps, air leaks, and rollers that bind within a year.

Performance Features

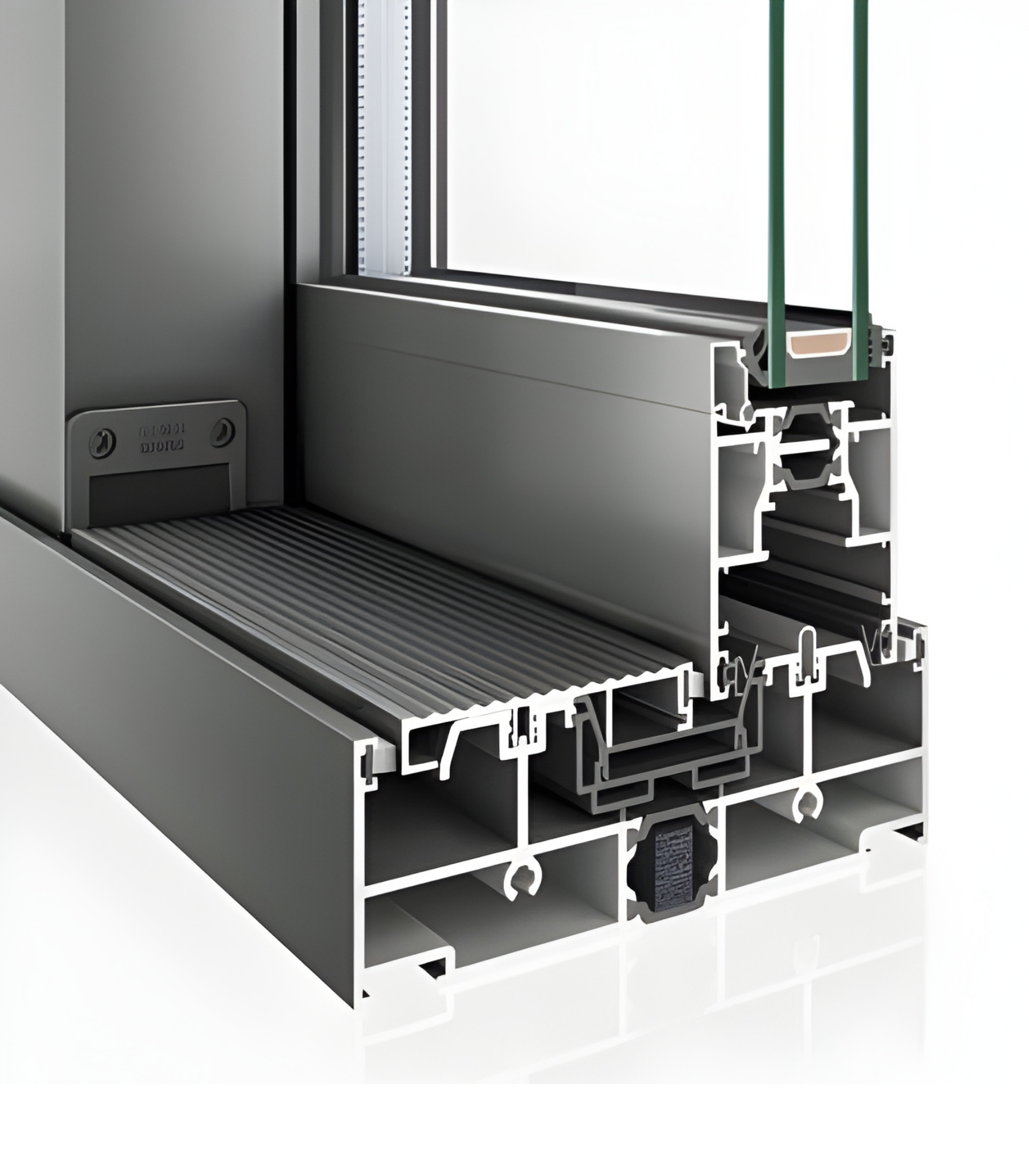

Thermal Efficiency – The VLX 150 uses thermal break technology in the frame, which separates the interior and exterior aluminum to stop heat transfer through the metal. In Los Angeles, that means less solar gain turning your living room into an oven in August, and better NFRC-rated energy performance across the board. Pair it with Low-E glass and the difference shows up on your LADWP bill.

Acoustic Performance – If you live near the 405, the 101, or a busy street in Los Angeles, you know noise is a constant. Laminated glass in the VLX 150 significantly reduces exterior sound transfer. The multi-point weather seals along the interlocking panels also help block the high-frequency noise that leaks through lesser door systems.

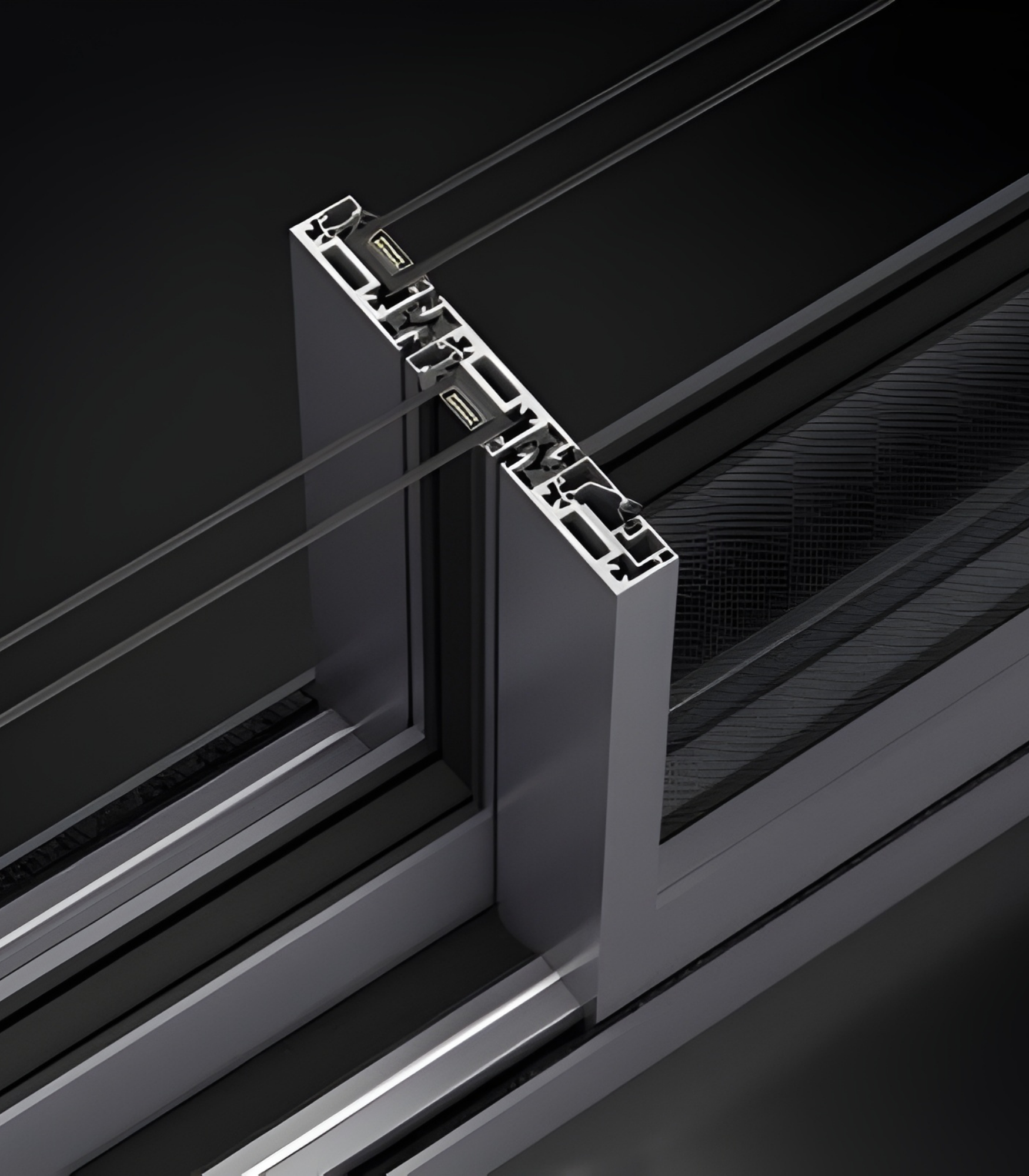

Airtightness & Weather Seal – Every perimeter joint on a Westlight Windows Los Angeles install gets AAMA 812 low-expansion foam sealant, and the door itself is engineered with interlocking panel seals that stop drafts at the meeting stiles. Los Angeles doesn’t freeze, but air leakage is still the number one cause of energy waste in a sliding door, and it’s the first thing you feel when you sit next to the door on a cold January evening.

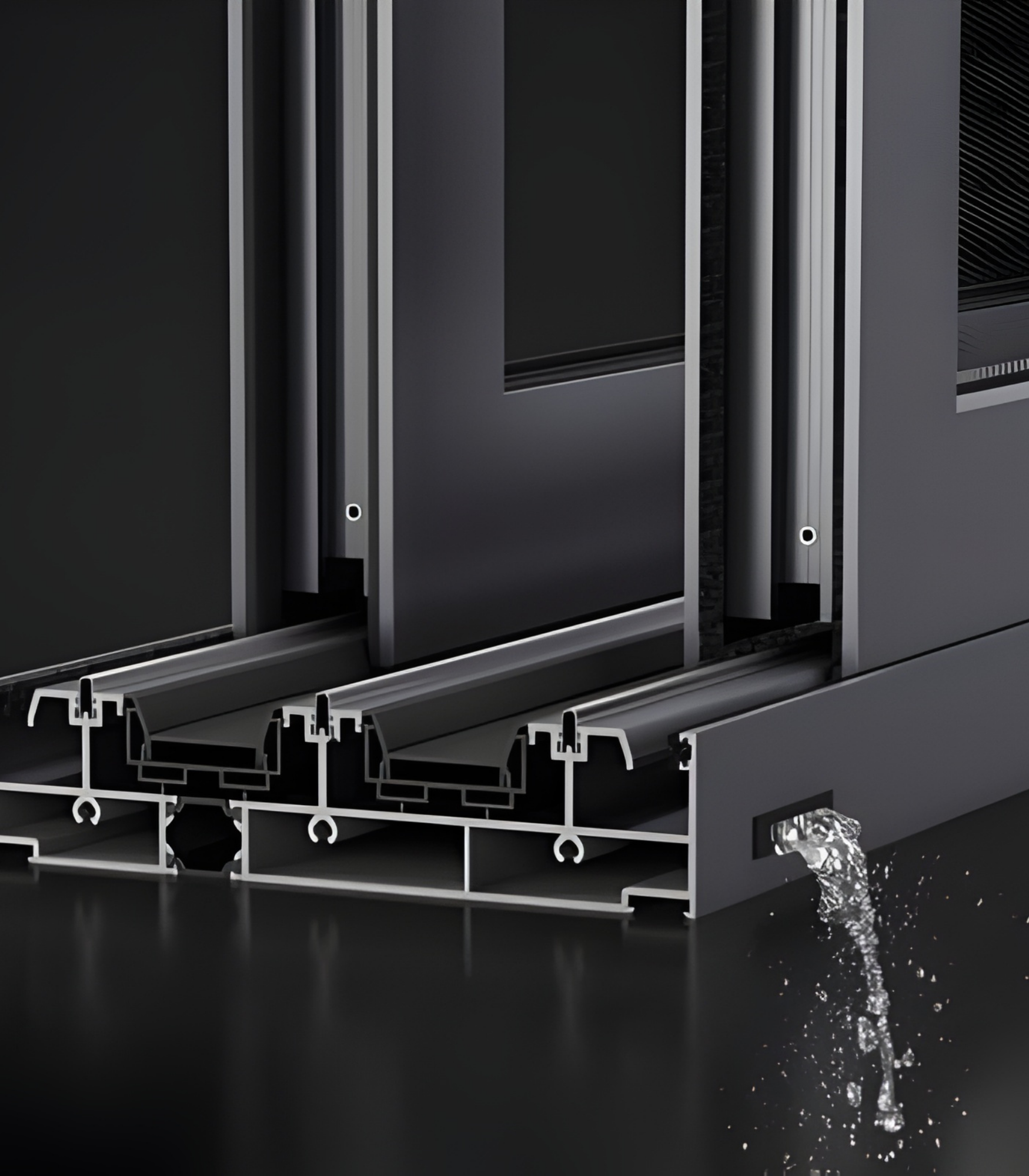

Waterproofing – The VLX 150’s sill and interlock design is built to move water away from the interior during heavy rain, which we do get in Los Angeles, especially in winter storms. The drainage channels and sill dam work together with proper flashing to prevent water ingress. Our installers also run a final water test on the finished opening before we call the job done.

Wind Resistance – Wind-load ratings matter in Los Angeles, particularly in hillside zones like the Hollywood Hills, Bel Air, and Malibu canyons where gusts can hit hard. The VLX 150 Heavy-Duty Sliding Door is wind-load rated for local climate requirements, and the 0.118-inch wall thickness gives the frame the backbone to keep large glass panels from flexing under pressure.

Security & Hardware – The stainless steel roller hardware and multi-point locking mechanisms in this series are robust without being clunky. For added protection, impact-resistant laminated glass is available, which holds together if struck rather than shattering. That’s a feature many of our Los Angeles clients ask about for ground-level openings and street-facing installations.

Color & Glass Options

The VLX 150 comes in six finishes, and the right one depends on the style of your Los Angeles property. Premium Black is the most requested on modern and contemporary builds – it defines the opening and frames the view like a gallery edge. Pure White works well on traditional Spanish and Mediterranean homes in neighborhoods like Hancock Park and Los Feliz. Anodized Silver is the classic aluminum look that suits mid-century properties and commercial storefronts. Bronze and Champagne both carry warm tones that complement wood-heavy interiors and Craftsman exteriors. Teak Wood gives the look of wood grain with none of the maintenance – popular for coastal homes where real wood frames get punished by salt air.

On the glass side, Clear is the standard choice when the view is the priority. Low-E adds a transparent coating that reflects heat – smart for west-facing openings in Los Angeles that get hit with afternoon sun. Tempered glass is safety-rated and required by code in many door locations. Laminated adds security and sound reduction. Gray Tint and Black Tint reduce glare and add privacy while still letting in natural light – good for street-level urban installations.

Installation by Westlight Windows Los Angeles in Los Angeles

A sliding door this heavy does not get installed correctly by chance. We’ve seen jobs in Los Angeles where an improperly set door caused the rollers to grind, the interlock to misalign, and the weather seals to gap within the first season. That’s a direct result of skipping steps: not checking the rough opening, not setting the frame level and square, and using the wrong sealant around the perimeter.

Our process starts with a pre-install inspection of the rough opening. We check the subfloor for level, verify the framing dimensions, and confirm the header can carry the load. If anything is off, we flag it before the door arrives, not after. On install day, we set the frame level, plumb, and square – square meaning the corners are true 90 degrees, which is what keeps the panels sealing correctly at the meeting stiles and the lock engaging smoothly.

Around the entire perimeter, we use AAMA 812-compliant low-expansion foam sealant. This is a specific requirement for aluminum window and door installations because it seals without warping the frame. We install per AAMA 2400/2410 standards, which are the accepted installation guidelines for fenestration products. After the door is in, we run a water test on the exterior to check for leaks, adjust the rollers so every panel travels smoothly, and clean the site before we leave.

Why does this matter in Los Angeles specifically? Building code enforcement varies by city – what passes in unincorporated LA County may differ from what Santa Monica or Pasadena requires. We’re familiar with the local jurisdictions and we install to a standard that passes inspection the first time. More importantly, ViewLux’s manufacturer warranty is tied to proper installation. If you buy the door through us, you get a partner who protects that warranty by doing the work right.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Los Angeles

If you’re planning a wide opening, a wall of glass, or a replacement for a slider that’s past its prime, let’s talk. We’ll measure your opening, spec the right VLX 150 configuration, and give you a written quote with no surprises. Call (213) 810-3461 to schedule a free on-site measurement in Los Angeles, or start a project conversation with our team today.

Written by the team at Westlight Windows Los Angeles, authorized ViewLux installation partner serving Los Angeles, CA.
